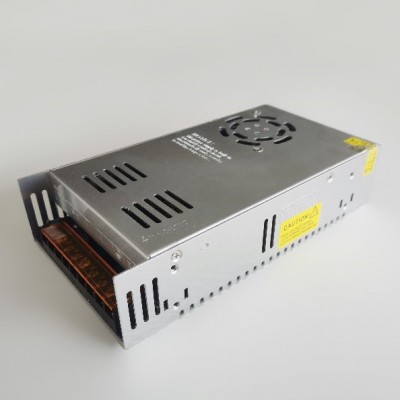

750W SMPS 12V 24V 48V 110V
Monitoring security
Fountain pump
Industrial automation
LED equipment
Industrial motor robot
Application:
Monitoring security
Fountain pump
Industrial automation
LED equipment
Industrial motor
robot
Features:
Full power
Safety and stability
Output adjustable
Industrial wiring
Constant voltage and constant current
New materials
Item | S-750-24 | S-750-36 | S-750-48 | S-750-60 | S-750-110 | |
Output | Dc voltage | 24V | 36V | 48V | 60V | 110V |
Output rated current | 31A | 21A | 15.6A | 12.5A | 6.8A | |
Output voltage range | 0-24V | 0-36V | 0-48V | 0-60V | 0-110V | |
Rated output power | 750W | 750W | 750W | 750W | 750W | |
Max current | 37A | 24A | 18A | 14.5A | 7.8A | |
Max power | 880W | 864W | 864W | 870W | 860W | |
Ripple&noise | 260Mvp-p | 280Mvp-p | 330Mvp-p | 330Mvp-p | 450Mvp-p | |
Efficiency | 88.5% | 89% | 90% | 90% | 92.5% | |
Input | Input voltage range | 220vac range (80-264vac) 50/60HZ | ||||
Input current | 3.8A @ Full load 750w, 220VAC | |||||
Protection | Output over load | The overload protection mode is constant current and limiting mode, locking the output current value does not rise, and the output voltage decreases as the load increaseing | ||||
Output short circuit | Self - recovery type, recovery output after short circuit elimination | |||||
Output over voltage | The overvoltage point is 115% of the rated voltage. After overvoltage, the protection is locked and will not recover automatically. Need to power off and then power on again | |||||
Working Enviro-ment | Insulation feature | Input to output: 2500Vac Input to housing: 1500Vac | ||||
Working Temperature | -25℃-+45℃, need to decrease the power when over-temperature | |||||
Heat dissipation | Forced air cooling | |||||
Others | Size | 260*102*65mm | ||||
Derating curve:
Installation size:
Note:

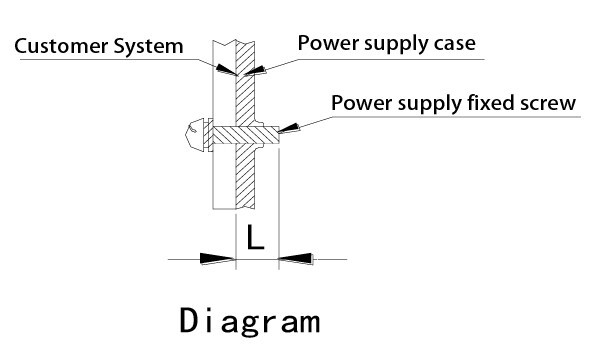

1.Screw into the power supply housing length Lmax 4mm(as shown in the right picture).
1. Size unit: mm
2. The tolerance of unmarked dimensions shall be GB/T1804-M Class
3. Select the best module installation mode
AC input installation description:
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
1 | AC-L |
95 |
22-12AWG |
11Kgf/CM(MAX) |
2 | AC-N | |||
3 | GR |
DC output installation description：
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
4/5/6 | V- | 95 | 22-12AWG | 11KgfCM(MAX) |
7/8/9 | V+ |
Instructions for installation and use:
1.During installation, please follow the above instructions for installation.
2.Before the installation is complete, please check and proofread the wiring on each terminal, make sure that input and output, AC and DC, positive and negative terminals, voltage and current values are correct, prevent the occurrence of reverse connection error, to avoid damage to the power supply and equipment.
3.Please use a multimeter to measure whether the live wire, neutral wire and ground wire are short-circuited and whether the output terminal is short-circuited before power-on.It is best to start no-load when energized.
4.Do not exceed the nominal value of the power supply, so as not to affect the reliability of the product.If you need to change the output parameters of the power supply, please consult the technical department of our company before using the power supply to ensure the use effect and reliability.
5.In order to ensure the safety of use and reduce interference, please ensure that the grounding terminal is reliably grounded (grounding wire greater than AWG18#.
6.In order to extend the life of the power supply, we can provide air duct design solutions.
7.Do not switch the power supply frequently, otherwise it will affect its life.
8.If the power supply fails, please do not repair it without permission. Please contact the customer service Department of our company as soon as possible.
Packing, transportation and storage:
1.Packaging: The product name, model, manufacturer's logo, manufacturer's quality department inspection certificate, manufacturing date, etc., shall be marked on the packing box.
2.Transportation: The packaging is suitable for transportation by car, ship, plane, train, etc. During transportation, it should be rainproof and loaded and unloaded in a civilized manner.
3.Storage: the product is not used should be placed in the packing box, storage environment temperature and relative humidity should meet the requirements of the product, there should be no corrosive gas or products in the warehouse, and no strong mechanical vibration, impact and strong magnetic field.The packing case should be padded at least 20cm above the ground and protected from water.If the storage time is too long (more than 1 year), it should be re-inspected by professional personnel before use.
