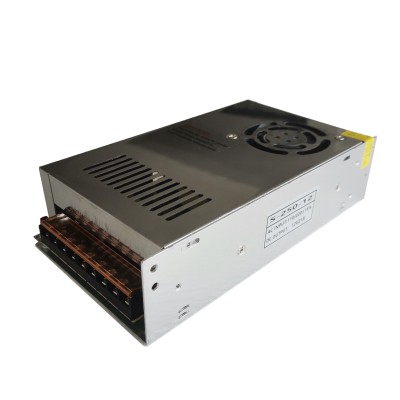

250W 5V 12V 24V 48V Switch-mode Power Supply
Industrial control system
Mechanical and electrical equipment
Electronic instrument and equipment
Household appliances
Application:
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instrument and equipment
Household appliances
Features:
Full voltage 90Vac~264 Vac, no switching
Comprehensive protection function: short circuit/overload/overvoltage
Design with full reference to safety regulations and EMC
All electrolytic capacitors with long-life at 105℃
High efficiency, long life and high reliability, 100% full load aging test
Specification：
Item | S-250-12F | S-250-24F | S-250-28F | S-250-36F | S-250-48F | ||
Output | Dc voltage | 12V | 24V | 28V | 36V | 48V | |
Output light load range | 12-12.1V | 24-24.2V | 28-28.2V | 36-36.2V | 48V-48.2V | ||
Output rated current | 21A | 10.4A | 8.9A | 6.9A | 5.2A | ||
Output current range | 0-21A | 0-10.4A | 0-8.9A | 0-6.9 A | 0-5.2A | ||
Rated output power | 250W | 250W | 250W | 250W | 250W | ||
Ripple&noise (Ta is the ambient temp.) | O < Ta 70℃ | 150mV | 200mV | 200mV | 300mV | 400mV | |
Output adjustment range | 10.2-13.8V | 21.6-28.8V | 25.2-30.8V | 32.4-39.6V | 43.2-52.8V | ||
Voltage stabilization accuracy | ± 2% | ||||||
Source adjustment rate @-10-50℃ | ± 0.5% | ||||||
Load adjustment rate | ± 1% | ||||||
Temperature coefficient | ± 0.03%/℃ | ||||||
Output start time | When 230vac input and full load, it is below 2.3s | ||||||
Output hold time | ≥16mS(230Vac input, Full load) | ||||||
Voltage overshoot @-10-50℃ | <5.0% | ||||||
Input | Input voltage range | 94-132Vac/187-253Vac through the switch | |||||
Rated input voltage range | 100Vac~240Vac | ||||||
Frequency range | 47Hz~63Hz | ||||||
Input current | <3.4A (Input 230vac, full load) | ||||||
Efficiency @25 ° C | 81% | 83% | 84% | 84% | 85% | ||
Input current @25 ° C | ≤3A@115Vac；≤1.5A@230Vac Full output load | ||||||
Starting impulse current | 100A@230Vac Cold start | ||||||
Standby power consumption @25℃ | ＜0.5W | ||||||
Protection |
Output |
Over power | 110%-180% OFF | ||||
Test method: Increase the output current until protection. When protection, it can not cause fire, smoke, electric shock and other dangerous phenomena. It can recover automatically after eliminating overpower. | |||||||
Over voltage | 13.8-16.2V | 28.8-33.6V | 32.2-36.4 | 41.4-46.8V | 55.2-64.8V | ||
Test method: Pin 1-3 of short circuit U2; Protection mode: constant voltage. It can not cause fire, smoke, electric shock and other dangerous phenomenon. It can return to normal after eliminating over voltage. Note: Do not use the external voltage to test. | |||||||
Over current | 120%-180% | ||||||
Test method: The overcurrent point is the current value of the output current increasing until the output voltage falls out of the stable voltage accuracy range. When protection, it can not cause fire, smoke, electric shock and other dangerous phenomena. After eliminating overcurrent, it can automatically resume to normal. | |||||||
Short circuit | The copper wire with sufficient cross-sectional area and length of 15cm± 5cm is used to short-circuit directly at the output port of the power supply, which can be short-circuit for long time. After eliminating short-circuit, it can be automatically restored | ||||||
Working Enviro-ment | Operating temperature and humidity | 0℃~50℃; 20%~90%RH No condensing | |||||
Storage temperature and humidity | -20℃~85℃; 10%~95%RH No condensing | ||||||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X,Y, Z axes | ||||||
Impact | 20G/11mS pulse ,3 times at each X,Y,Z axes | ||||||
Altitude | 5000m (Above 2000m, the ambient temperature drops 0.5 ° C for every 100m increase in height) | ||||||
Three prevention requirements | Moisture-proof, mildew proof, salt spray proof | ||||||
Safety standard @25℃ | Safety standard | Refer to GB4943, IEC62368 | |||||
Insulation strength | Input-output: 1.5KVac/10mA: Input-Housing: 1.5KVac/10mA: Output-Housing: 0.5KVdc/10mA. The test time is 1min | ||||||
Ground test | Test conditions: 40A/2 minutes; Ground impedance: <0.1 ohms. | ||||||
Leakage current | Input to ground 3.5mA; Input to output 0.25mA | ||||||
Insulation negative resistance | Input-output: 100M ohms; Input -- housing: 100M ohms; Output -- Housing: 100M ohms | ||||||
Others | Installation method | refers to the instructions. | |||||
Size | 199*110*50mm | ||||||
Connecting terminal | 95 terminal block/ 9Pin | ||||||
Reli-ability require-ment | Design MTBE | 100,000Hrs AT 25℃, MIL-217 Method 2 Components Stress Method | |||||
Comments
1. If no other specified, all specifications are tested at 230VAC, rated load, 25℃ ambient temperature.
2. The ripple noise is connected by 22# twisted pair wire, the bandwidth of oscilloscope is set to 20MHz, the Teck P3010 100M bandwidth probe is used, and the probe end is connected in parallel with 0.1uF polypropylene capacitor and 10uF electrolytic capacitor. The oscilloscope sampling mode is Sample.
Installation size:
Note:
1.Screw into the power supply housing length L (as shown in the right picture).
2. Size unit: mm
3. The tolerance of unmarked dimensions shall be GB/T1804-M Class
4. Select the best module installation mode
AC input installation description:
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
1 | AC-L |
9.5 |
22-12AWG |
11Kgf/CM(MAX) |
2 | AC-N | |||
3 | GR |
DC output installation description：
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
4 | V- | 9.5 | 22-12AWG | 11KgfCM(MAX) |
5 | V+ |
Instructions for installation and use:
1.During installation, please follow the above instructions for installation.
2.Before the installation is complete, please check and proofread the wiring on each terminal, make sure that input and output, AC and DC, positive and negative terminals, voltage and current values are correct, prevent the occurrence of reverse connection error, to avoid damage to the power supply and equipment.
3.Please use a multimeter to measure whether the live wire, neutral wire and ground wire are short-circuited and whether the output terminal is short-circuited before power-on.It is best to start no-load when energized.
4.Do not exceed the nominal value of the power supply, so as not to affect the reliability of the product.If you need to change the output parameters of the power supply, please consult the technical department of our company before using the power supply to ensure the use effect and reliability.
5.In order to ensure the safety of use and reduce interference, please ensure that the grounding terminal is reliably grounded (grounding wire greater than AWG18#.
6.In order to extend the life of the power supply, we can provide air duct design solutions.
7.Do not switch the power supply frequently, otherwise it will affect its life.
8.If the power supply fails, please do not repair it without permission. Please contact the customer service Department of our company as soon as possible.
Packing, transportation and storage:
1.Packaging: The product name, model, manufacturer's logo, manufacturer's quality department inspection certificate, manufacturing date, etc., shall be marked on the packing box.
2.Transportation: The packaging is suitable for transportation by car, ship, plane, train, etc. During transportation, it should be rainproof and loaded and unloaded in a civilized manner.
3.Storage: the product is not used should be placed in the packing box, storage environment temperature and relative humidity should meet the requirements of the product, there should be no corrosive gas or products in the warehouse, and no strong mechanical vibration, impact and strong magnetic field.The packing case should be padded at least 20cm above the ground and protected from water.If the storage time is too long (more than 1 year), it should be re-inspected by professional personnel before use.
