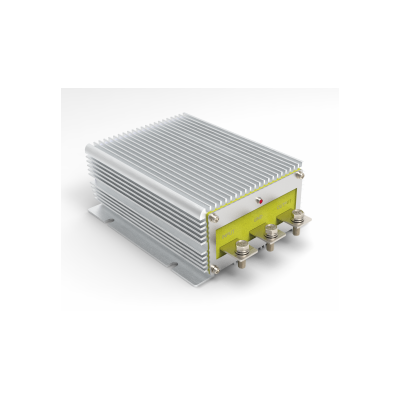

24V to 48V 20A 1000W DC-DC Converter, Non-Isolated
Efficiency up to 95 %
IP 65 Waterproof ( excluding terminals, LED lights )
internal glue sealing, anti-vibration, dust-proof
Self-cooling, easy installation
Input voltage range 18V to 40V
Stable output voltage 48V
Maximum output current 20A
100% burn-in test
Efficiency up to 95%
IP 65 Waterproof ( excluding terminals, LED lights ) , internal glue sealing , anti-vibration, dust-proof
Self-cooling , easy installation
Over current protection: when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
Over temperature protection: When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
Reference standards : EN 61000-6-3 : 2007/ A 1 : 2011/ AC : 2012 EN 55014-1 : 2006/ A 2 : 2011 EN 60950-1 : 2006/ AC : 2011
OUTPUT + : Load positive
GND : battery negative / load negative
INPUT + : battery positive
up to 95%
Maximum Output Current
500mVp ( measured by 20M oscilloscope)
± 1 %
± 1 %
± 2 %
IP 6 5 (except output ports and indicator light)
-40 ~ 55 ° C
Above specifications are tested under the room temperature 25 ℃ ( derating is required for high temperature above 50 °C ).
