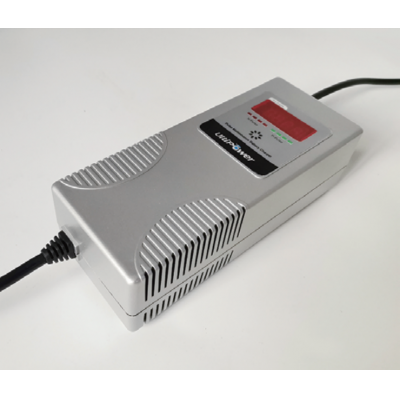

150W High frequency digital display battery charger

The shell of this charger adopts high frequency conversion circuit and intelligent digital display control circuit. Suitable for lead-acid maintenance-free battery, liquid rich lead-acid battery, lithium battery, nickel metal hydride battery, nickel cadmium battery, etc. Widely used in the cycling charge and floating charge of battery packs in the forklift AGV,pallet truck,etc.

Technical parameters

. Ac input voltage range: 100-260VAC/180-260VAC （for option）; 45-65Hz

. AC max input current:  0.75A@220VAC

. Noise: ≤60dB

. Net weight: 0.5kg±0.3kg

. Working temperature: -30°C~＋55°C

. Storage temperature: -40°C~＋95°C

Protective function

. Output overvoltage protection

. Output overvoltage protection

. Output shortcircuit protection

. Fully charge automatic shutdown

. Output no-load protection

. Output reverse connection protection

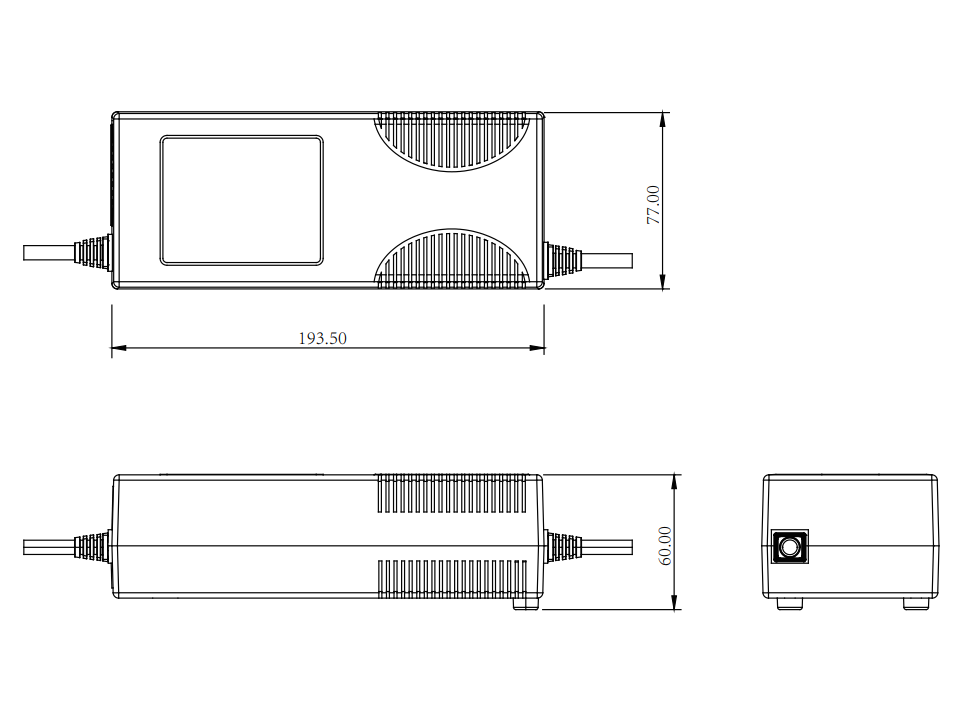

Mechanical Size

Model List
