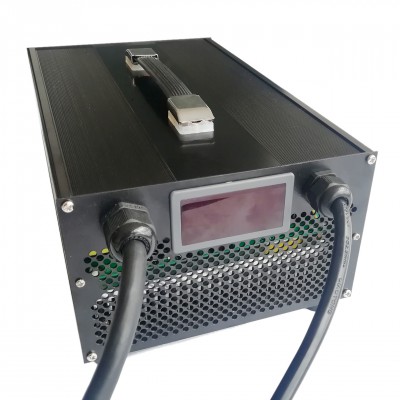

3000W High Frequency Digital Display Battery charger

This series chargers adopt LED digital display and MCU intelligent control mode. Suitable for lead-acid battery and lithium battery. Widely used in the cycling charge of battery packs in the E-sweeper, E-sighting car, E-golf cart, communication, electricity, ship, etc.

Technical parameters

. Ac input voltage range: 200-240VAC （for option）; 45-65Hz

. AC max input current:  7A@220VAC

. Noise: ≤65dB

. Max Efficiency: 90% (Full load)

. Net weight: 2kg±0.3kg

. Working temperature: -20°C~＋55°C

. Storage temperature: -40°C~＋95°C

Protective function

. Output overvoltage protection

. Input overcurrent protection

. Output shortcircuit protection

. Input overvoltage protection

. Output no-load protection

. Input unvervoltage protection

. Output reverse connection protection

. Over temperature protection

. Output overcurrent protection

. Fully charge automatic shutdown

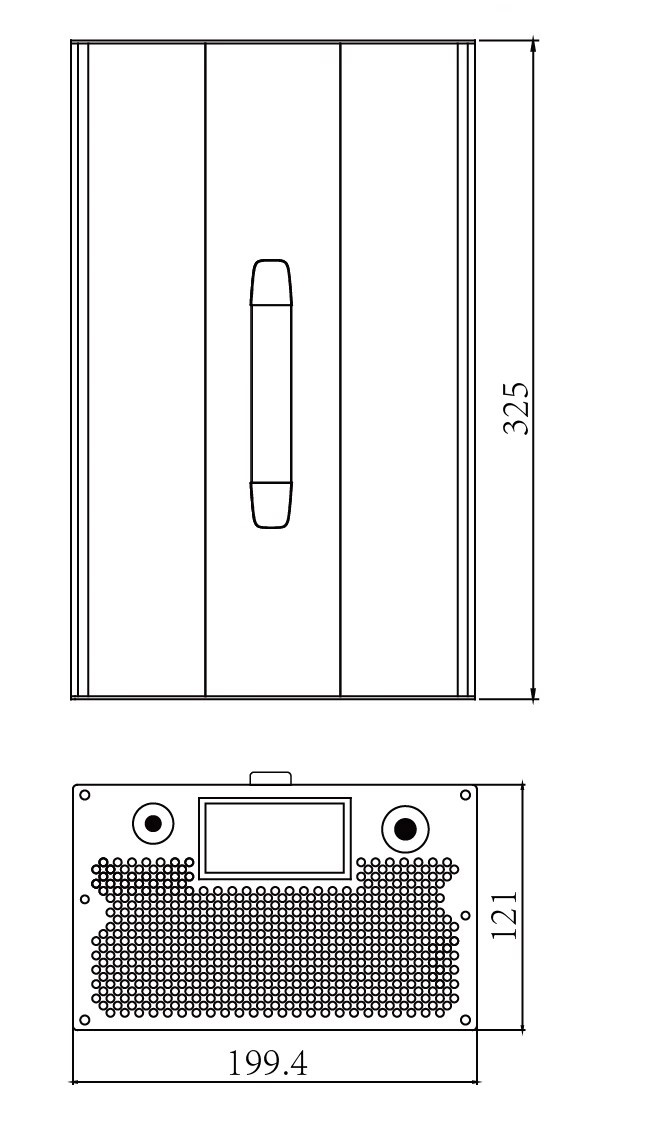

Mechanical Size

Model List
