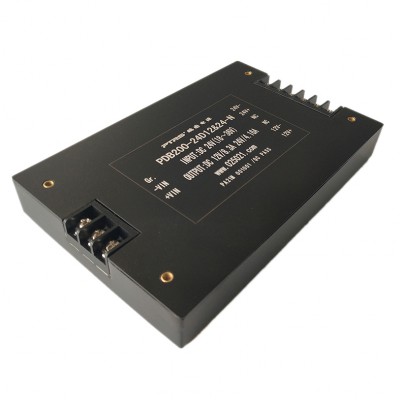

100-350W Dual/Triple Output DC DC Converter

π type input filter;
2X voltage input;
Output short circuit protection;
Easy installation;
Best case attaching mode;
Design for high reliability, long lifetime;

Features

— π type input filter

— 2X voltage input

— Output short circuit protection

— Easy installation

— Best case attaching mode

— Design for high reliability, long lifetime



Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.


Input Characteristic


Voltage range

12VDC (Normal Rated Value): 9 ~ 18 VDC

24VDC (Normal Rated Value): 18 ~ 36 VDC

48VDC (Normal Rated Value): 36 ~ 72 VDC

110VDC (Normal Rated Value): 66 ~ 154 VDC

600VDC (Normal Rated Value): 400 ~ 800 VDC


Output Characteristic

Voltage set-point accuracy ……………… ±2%

Line Regulation (Main) ……….........……… ±0.5%

Load regulation (Main) ………........…..........±0.5%

Output Current Limited ................................. 120% (Typ)

Output current …………………………………5-40A for optional

Output voltage …………………………………5-48V

Power ……………………………………………100-350W



General Characteristic



Switching frequency …………………… 100-200 KHz

Isolation resistance ……………………  200 MΩ

Isolation voltage

Input-output: >1500 VDC

Input-case: >1050 VDC

Output-case: >500 VDC

Environmental Characteristic

Substrate Working Temperature ………Industry: -25-+85℃

                                   Military I: -40-+85℃

                                   Military II: -55-+85℃

Storage temperature …………………… Industry: -45~ +105℃

                                   Military: -55-+105℃


Protection features

Input undervoltage protection         Output overcurrent protection

Input overvoltage protection          Output short circuit protection

Over temperature protection

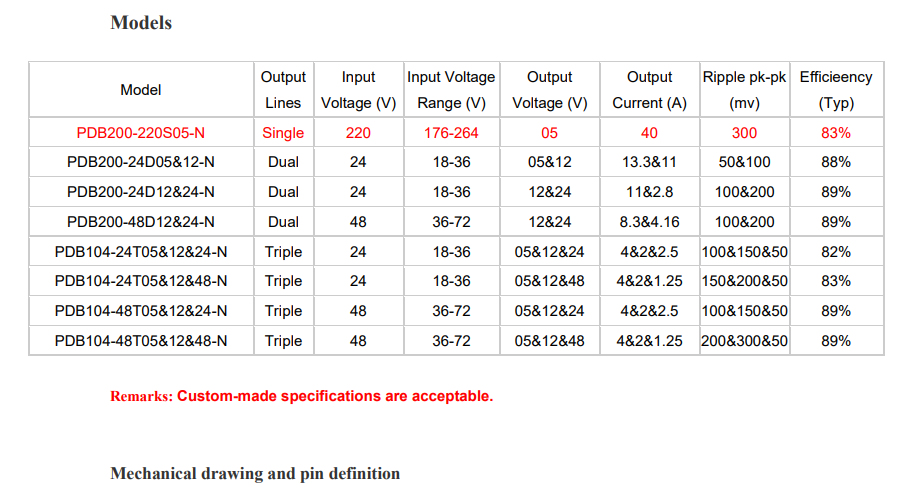

Models



Remark: Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

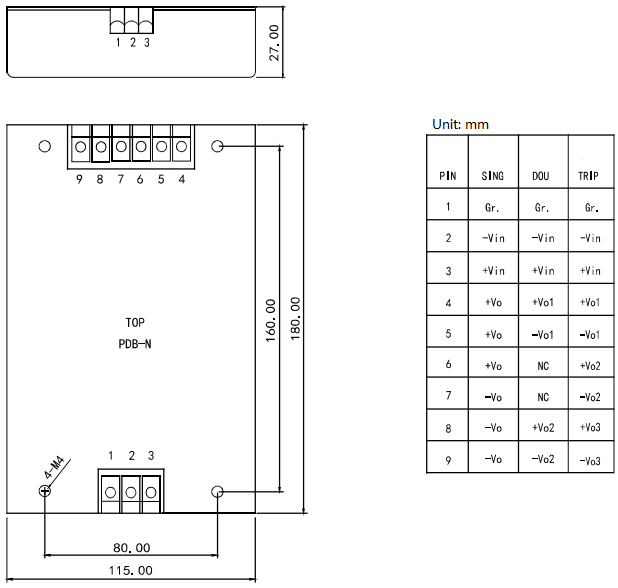

Mechanical Drawing & Pin definition
