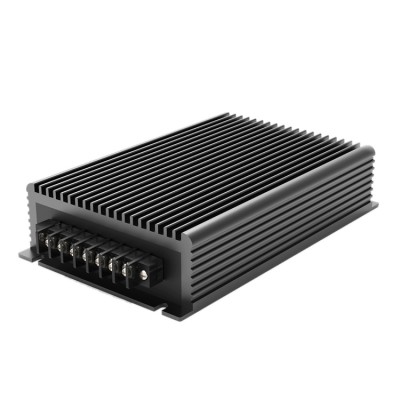

40-200W High Input Voltage DC DC Module Power Supply

Features

Can be used for solar photovoltaic

Good appearance, good heat dissipation

High efficiency

Natural cooling

High and low voltage input is for option

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

Input Characteristic

Voltage range

12 VDC (Normal Rated Value):  9~18 VDC

24 VDC (Normal Rated Value): 18~ 36 VDC

48 VDC (Normal Rated Value): 36~ 72 VDC

110 VDC (Normal Rated Value): 66~ 154 VDC

18 VDC (Normal Rated Value): 9~ 36 VDC

Output Characteristic

Voltage set-point accuracy ……………… ±2%

Output voltage adjusted range………... ……±10%

Line Regulation (Main) ……….........……… ±0.5%

Load regulation (Main) ………........…..........±0.5%

Output Current Limited ................................. 120% （Typ）

Peak current …………………………………2-20A for option

Output voltage …………………………………5-48V for option

Power ……………………………………………40-200W

General Characteristic

Switching frequency …………………… 100-200 KHz

Isolation resistance ……………………  200 MΩ

Isolation voltage

Input-output: >1500vdc

Input-case: >1050vdc

Output-case: >500vdc

Environmental Characteristic

Case Temperature ………Industry: -25-85℃

                       Military I: -40-85℃

Storage temperature …………………… Industry: -45~ +105℃

                                   Military I: -55-85℃

Protection features

Input under voltage protection         Output over current protection

Input over voltage protection          Output short circuit protection

Over temperature protection

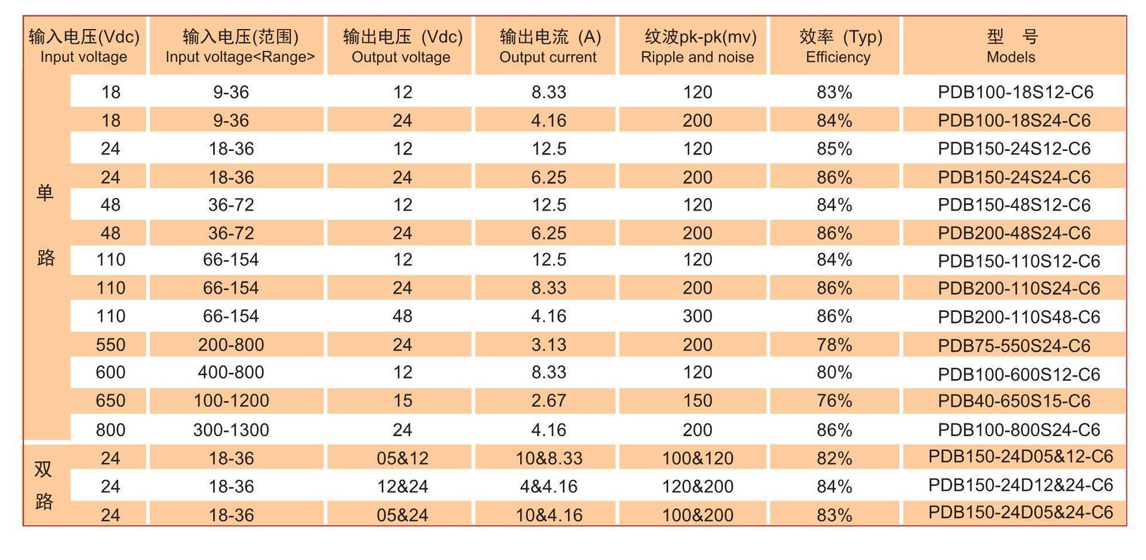

Models

Remark: Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

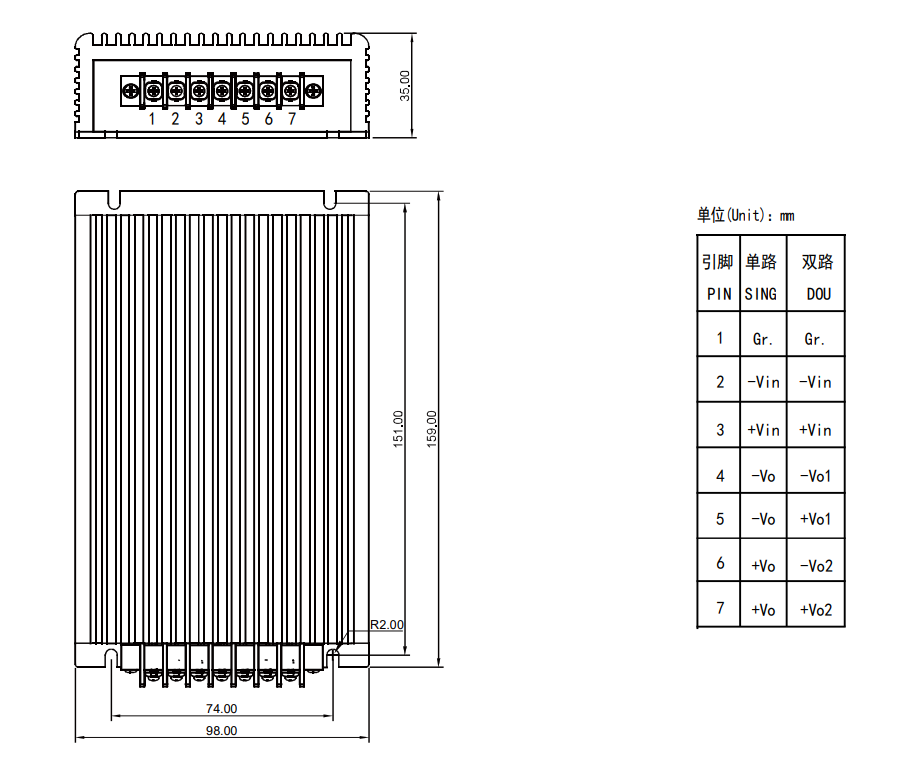

Mechanical Drawing & Pin definition
