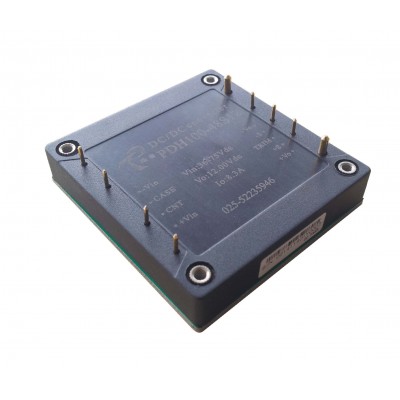

100-200W Half Brick Power Supply

Industry standard half brick;
Wide input voltage;
High voltage isolation;
Control and Trim functions;
High Efficiency.

Features

— Industry standard half brick

— Wide input voltage

— High voltage isolation

— Control and Trim functions

— High Efficiency



Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.


Input Characteristic


Voltage range

24VDC (Normal Rated Value): 18 ~ 36 VDC

48VDC (Normal Rated Value): 36 ~ 72 VDC

110VDC (Normal Rated Value): 66 ~ 154 VDC


Output Characteristic



Voltage set-point accuracy ……………… ±2%

Line regulation(Full load) ……….........……… ±0.5%

Load regulation(20-100% load) ………........…±0.5%

Trim Range …………………………………………±10%



General Characteristic



Switching frequency …………………… 200-350 KHz

Isolation resistance ……………………  200 MΩ

Isolation voltage

Input-output: >1500 VDC

Input-case: >1050 VDC

Output-case: >500 VDC

Environmental Characteristic

Substrate Working Temperature ……………… Industry: -40-+100℃

Storage temperature …………………… Industry: -45~ +105℃

REM Features

Positive Logic: High level or no connect working

Output voltage remote compensation max: 105%Vo


Protection features

Input undervoltage protection         Output overcurrent protection

Input overvoltage protection          Output short circuit protection

Output overvoltage protection         Over temperature protection

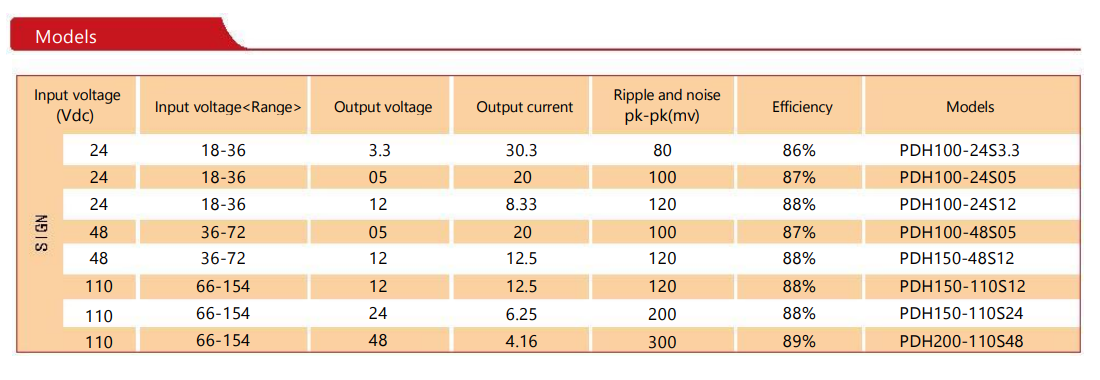

Models



 Remark: Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

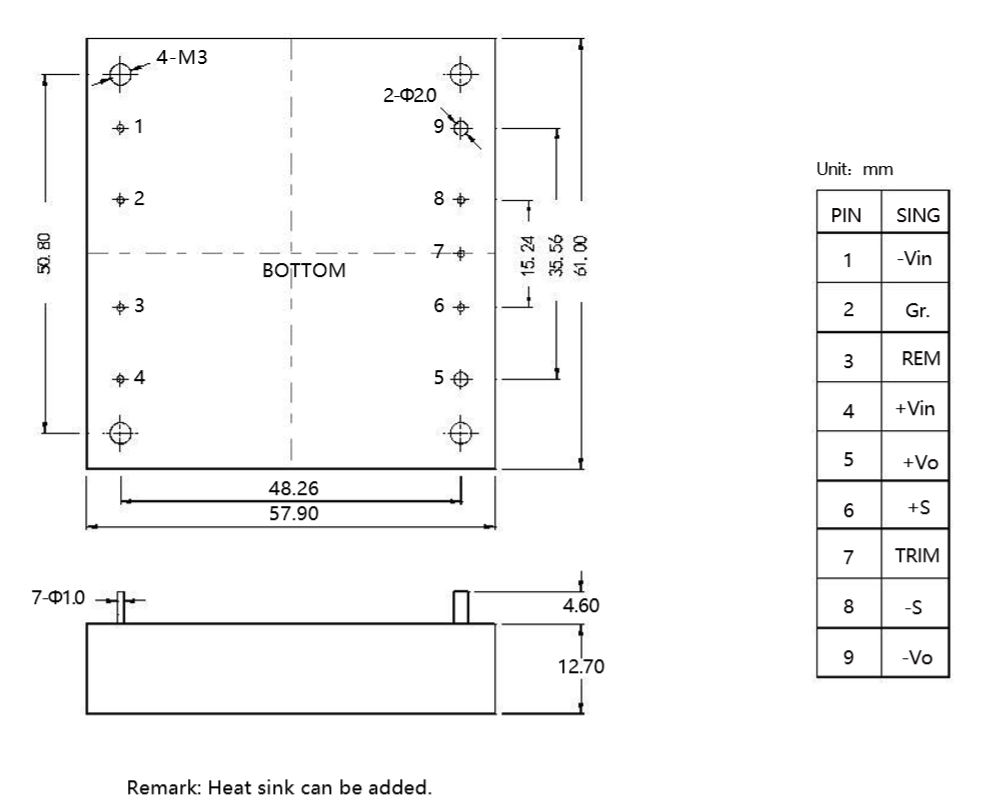

Mechanical Drawing & Pin definition
