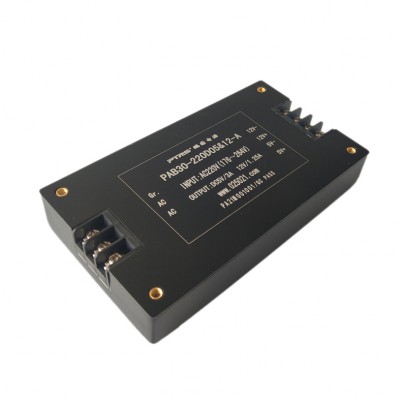

30-100W Module power supply 5v 12v 24v 48v
Broadband noise filter of input;
Surge suppress circuit of input;
Comply with UL1950, IEC950 safety regulation;
Attractive outline design;
Terminal connection method
Product Description
Features
l Wide range of input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL 1950, IEC950 safety regulation
l Attractive outline design
l Terminal connection method
l Fast dynamic response
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176 ~ 264 VAC
Output Characteristic
Voltage set-point accuracy ……………… ±2%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% （Typ）
Output current …………………………………2-15A for optional
Output voltage …………………………………5-48V
Power ……………………………………………30-100W
General Characteristic
Switching frequency …………………… 100-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VAC/MIN (Leakage current ＜5mA)
Input-case: >1500 VAC/MIN (Leakage current ＜5mA)
Output-case: >500 VDC/MIN
Main-Viice: >500 VDC/MIN
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Protection features
Input undervoltage protection Output overcurrent protection
Output short circuit protection Over temperature protection

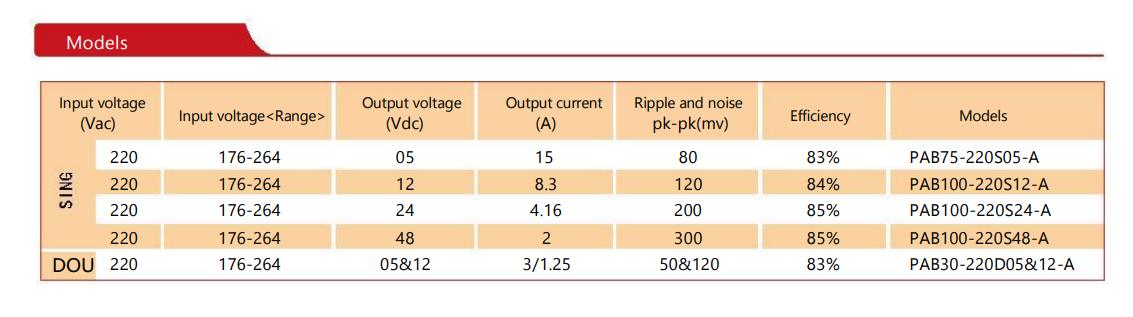

Models
Remark: Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

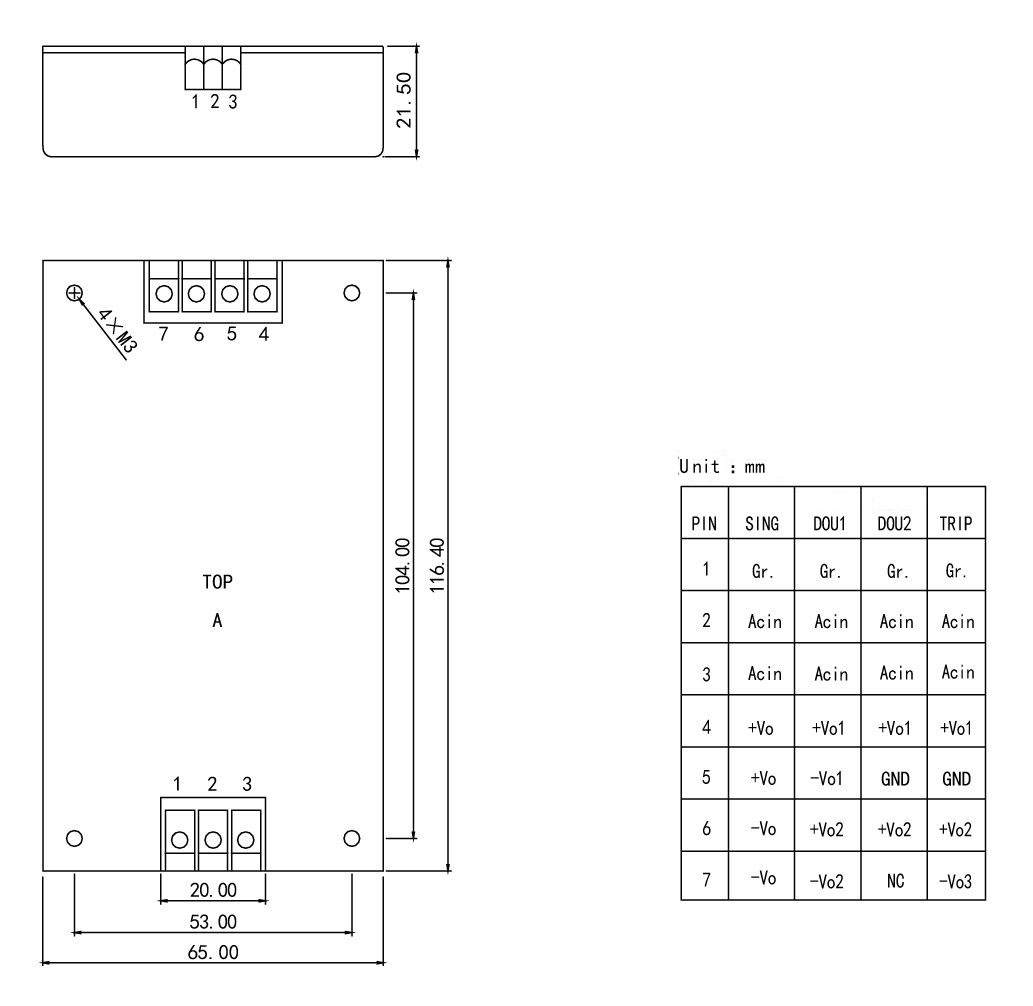

Mechanical Drawing & Pin definition
