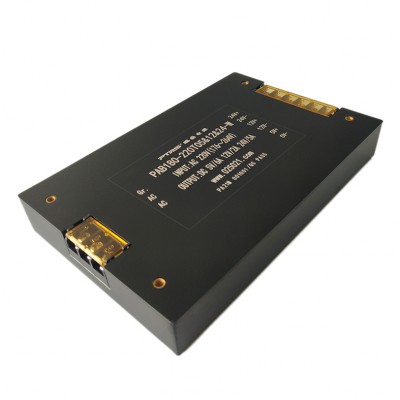

200-300W Wide input voltage range isolated Power Supply

Wide range of input voltage;
Broadband noise filter of input;
Surge suppress circuit of input;
Comply with UL 1950, IEC950 safety regulation;
Attractive outline design;
Terminal connection method;
Fast dynamic responseConditions.

Features

— Wide range of input voltage

— Broadband noise filter of input

— Surge suppress circuit of input

— Comply with UL 1950, IEC950 safety regulation

— Attractive outline design

— Terminal connection method

— Fast dynamic response


Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.


Input Characteristic

Voltage range

220VAC (Normal Rated Value): 100 ~ 240 VAC     176 ~ 264 VAC


Output Characteristic

Voltage set-point accuracy ……………… ±2%

Line Regulation (Main) ……….........……… ±0.5%

Load regulation (Main) ………........…..........±0.5%

Output Current Limited ................................. 120% (Typ)

Output current …………………………………3-60A for optional

Output voltage …………………………………5-48V

Power ……………………………………………200-300W



General Characteristic

Switching frequency …………………… 100-200 KHz

Isolation resistance ……………………  200 MΩ

Isolation voltage

Input-output: >1500 VAC/MIN (Leakage current <5mA)

Input-case: >1500 VAC/MIN (Leakage current <5mA)

Output-case: >500 VDC/MIN

Main-Viice: >500 VDC/MIN

Environmental Characteristic

Substrate Working Temperature ………Industry: -25-+85℃

Military I: -40-+85℃

Military II: -55-+85℃

Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃


Protection features

Input undervoltage protection         Output overcurrent protection

Output short circuit protection         Over temperature protection

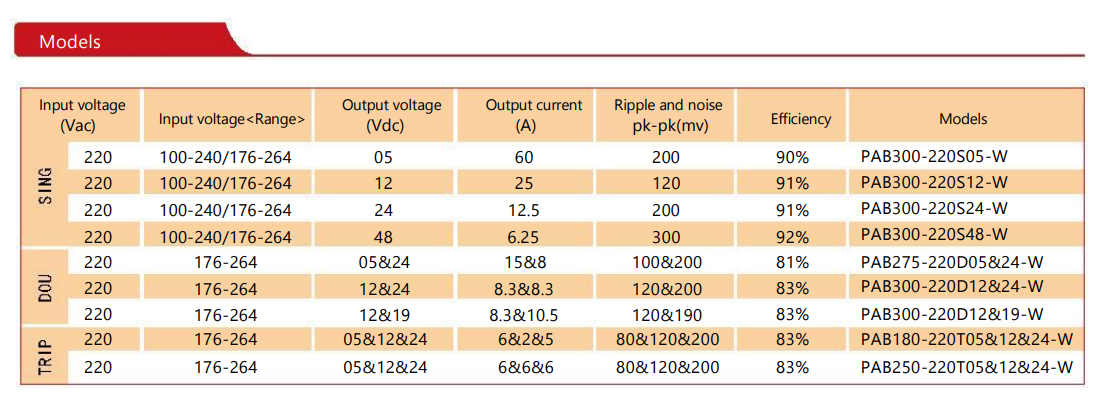

Models

PAB-W C.png



Remark: Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

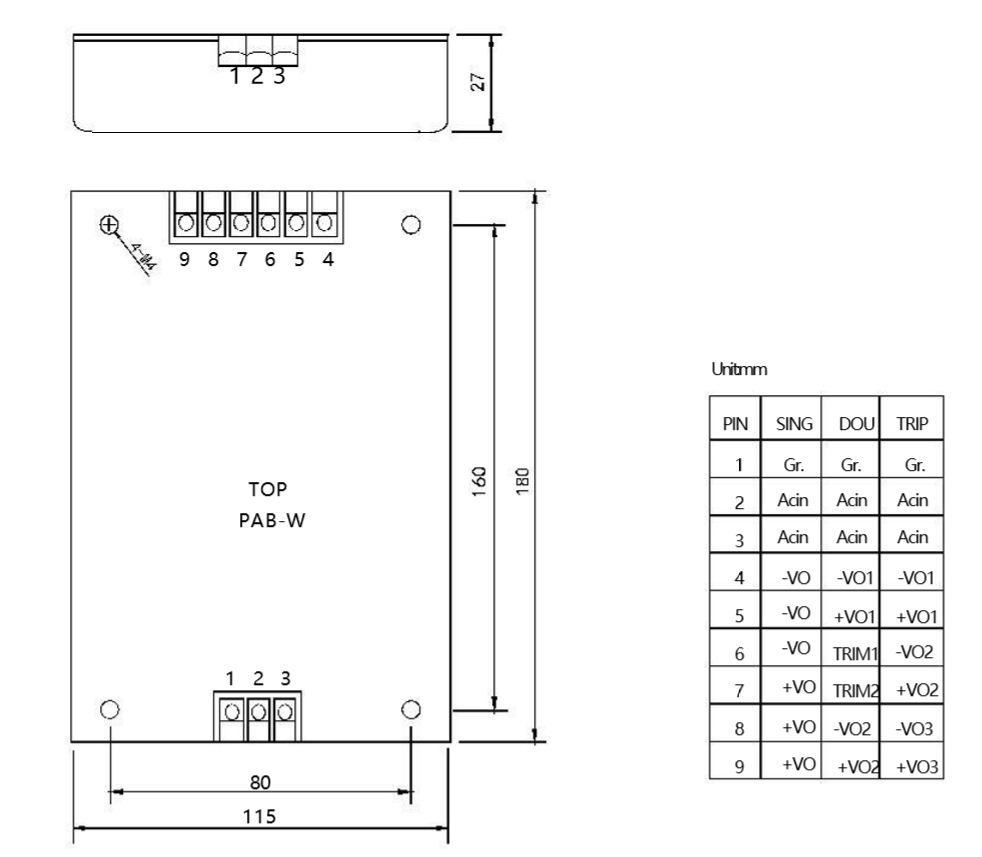

Mechanical Drawing & Pin definition
